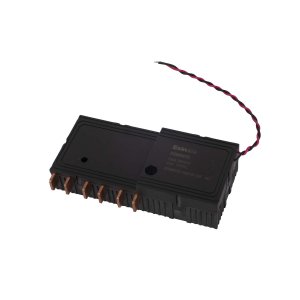

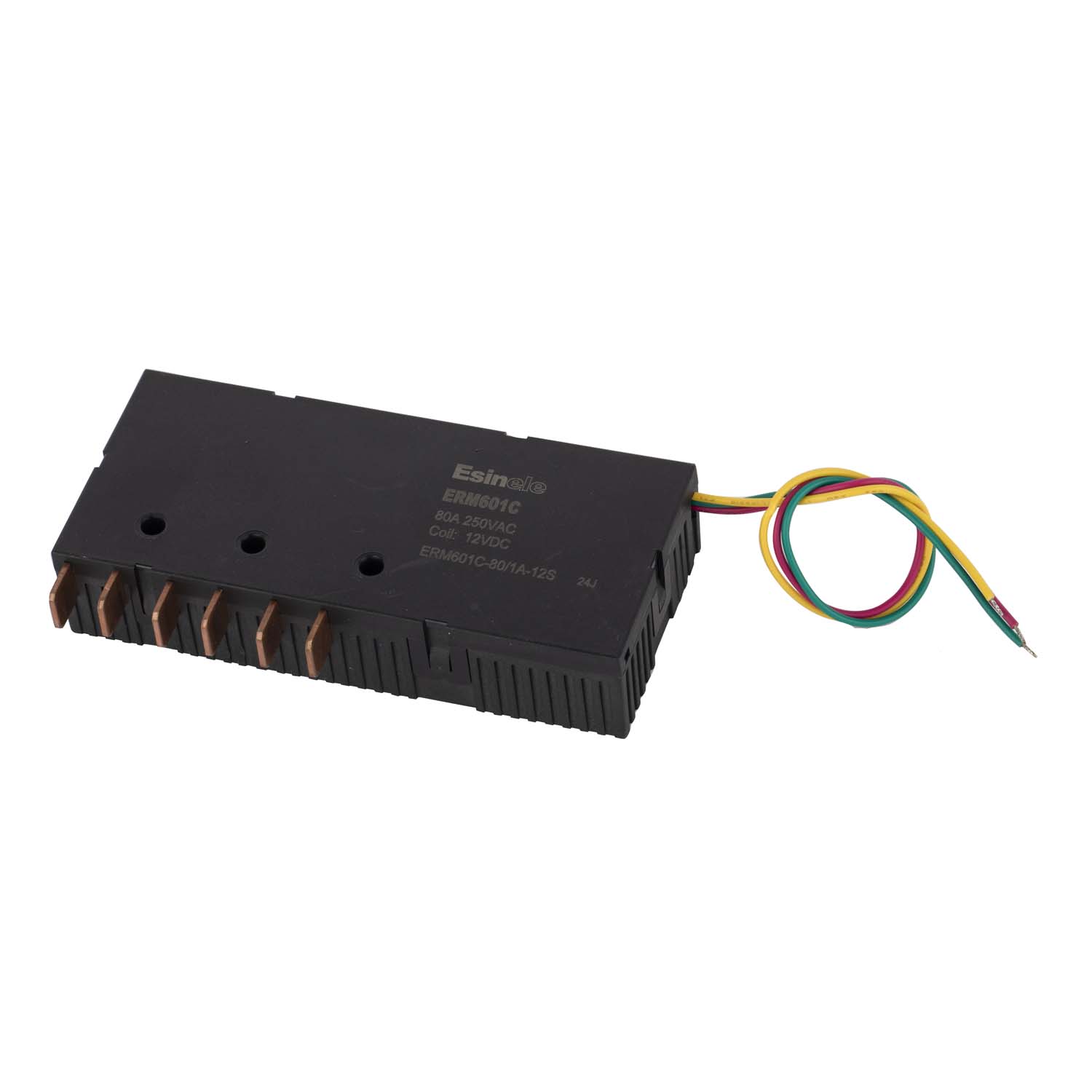

ERM601C
Characteristic:
- 120A three sets of contacts switching simultaneously, auxiliary contact can be added.
- Only impulse excitation needed, both for single and double coil.
- Low power consumption.
- Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
- 4KV dielectric strength between coil and contacts.
- RoHS compliant
- Outline dimensions:(117x52x28) mm.
| Characteristics | ||
| Ambient Temp | -40~+70ºC | |
| Ambient Humidity | ≤75% Annually average | |
| Anti-vibration | 10~55Hz, 0.5mm (Double Amplitude) | |
| Anti-shock | 98m/s2 , 11ms | |
| R.H. | 45%~85% | |
| Contact Resistance | ≤2.0mΩ (1A/6VDC) | |
| Insulation Resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between Contacts | 2000VAC 50/60Hz(1 Minute) |
| Between Contact & Coil | 4000VAC 50/60Hz(1 Minute) | |
| Between Contact & Contacts | 6000VAC 50/60Hz(1 Minute) | |
| Life | Electrical Life | ≥1×104 OPS |
| Mechanical Life | ≥5×105OPS | |
