Product Description

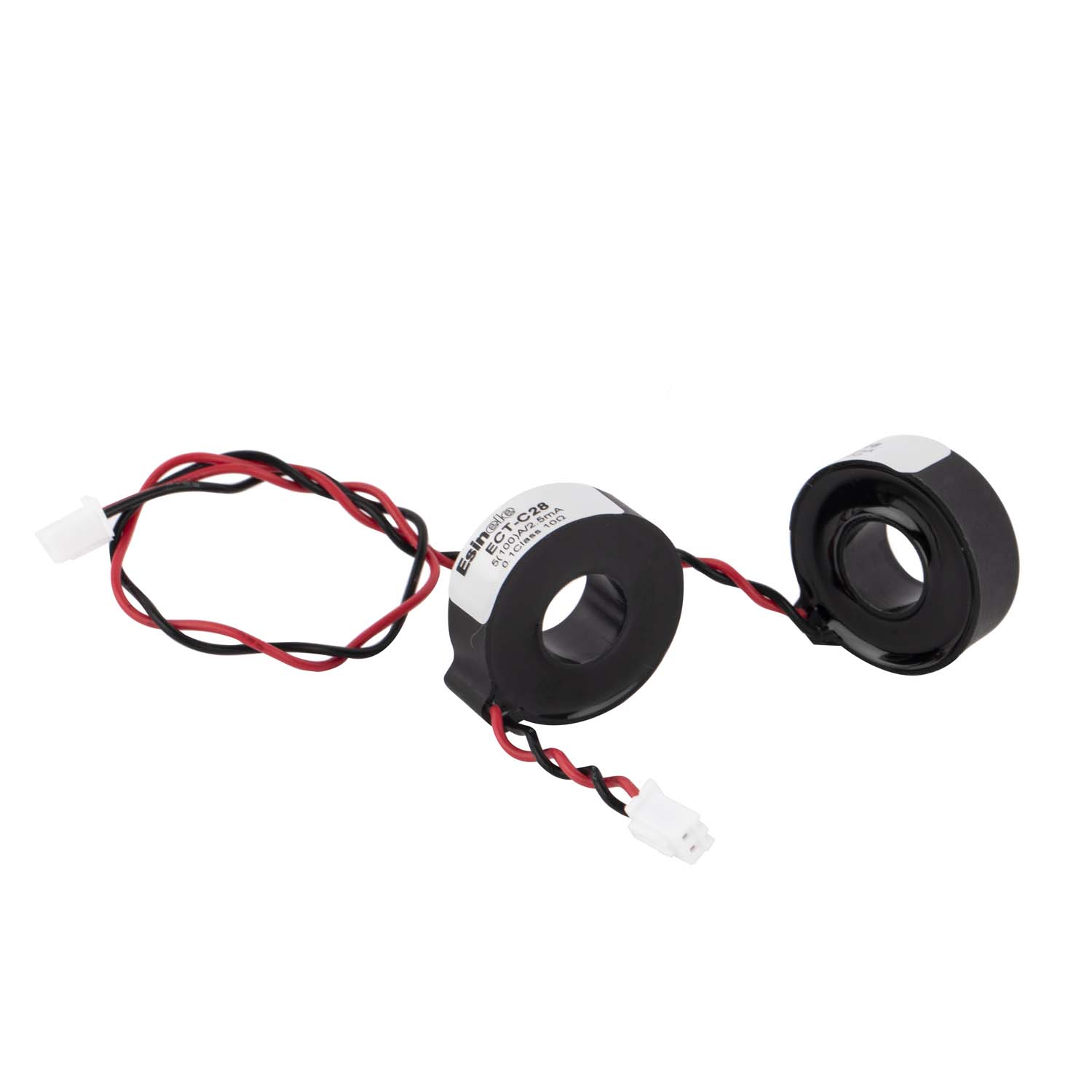

ECT-C28
Characteristic:
Small size;
High accuracy;
Good consistency;
For current and power measurement.
Characteristic:
Small size;
High accuracy;
Good consistency;
For current and power measurement.
| Characteristics | |
| Max. Current | 40~120A |
| Turns Ratio | Customzied |
| Primary Current | 5~10A |
| Secondary Current | 4~10mA |
| Accuracy Class | 0.1 |
| DC Immunity Available | Yes |
| Preformance | |
| Operating Temperature | -25ºC~+75ºC |
| Storage Temperature | -40~+85ºC |
| Relative Humidity | ≤98% (25ºC) |
| Isolation Resistance | 4000Vrms, 1min, No breakdown, No arcing |
| Load Resistance | ≥1000MΩ |
| Operating Frequency | ≤20Ω |
| Outer Case Material | Flame retardant PBT |
| Environmental Feactures | ROHS 2.0 |
| External Diagram |
 |
FAQ
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 200,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What’s the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to “Send” us an e-mail Now!!!
